Photovoltaic Inverters

Inverters are used for DC to AC voltage conversion. Output voltage form of an inverter can be rectangle, trapezoid or sine shaped. Grid connected inverters have sine wave output voltage with low distortion ratio. Inverter input voltage usually depends on inverter power, for small power of some 100  the voltage is 12 to 48 V. For grid connected invertres common input voltage range is from 200 to 400 V or even more. Grid connected inverters can be connected in parallel when higher powers are required. For large systems 3-phase inverters are available on the market. Inverters connecting a PV system and the public grid are purposefully designed, allowing energy transfers to and from the public grid. According to working principle many different types of inverters are distiguished, such as central inverters for wide power range to up to 100 kW or even more, string inverters and module inverters. Central inverters are used in large PV power plants. Some inverters can be connected according to the master-slave criteria, when the succeeding inverter switches on only when enough solar radiation is available or in case of main inverter malfunction. Inverters connected to module strings are used in wide power range applications allowing for more reliable operation. Module inverters sometimes also called micro inverters are used in small photovoltaic systems. Such solutions are applicable to larger systems, however, in practice cheaper solution of central inverter or string inverters are used. Special design inverters are available for the purposes of off-grid or hybrid systems. In most cases a powerful inverter includes charge regulator electronics, and not only the inverter. Modern inverters are the most sophisticated electronic devices implemented in photovoltaic systems. On top of high reliable electronics, which must be used, great care should also be taken on lightning protection. Inverters are based on microprocessor circuits, classic or RISC, and on power MOS, IGBT or SiC transistors.

Inverter Construction

Input stage of a grid-tied inverter is usually buck or similar converter. With appropriate MPP algorithm conversion in at maximum power can be attained. For more information about MPP algorithms and MPP trackers see literature section below. Main parts of an inverter are presented on the picture below: Input, MPP unit, DC/DC converter, switching bridge, output inductance, output DC current detection (protection function), ENS protection. Control functions includes grounding monitoring, optional display, thermal and overvoltage protection, communication ports (WiFi, Powerline, RS232 etc.).

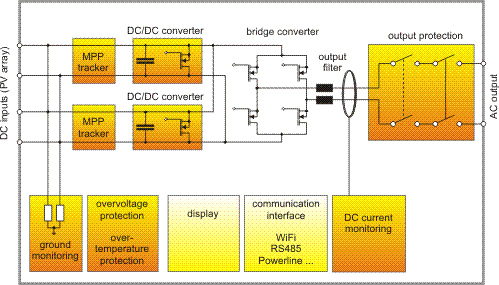

Main parts of an inverter, credit pvresources

Main parts of an inverter
(credit: pvresources)

Technical data

The most important inverter parameters are rated DC and AC power, MPP Voltage range, maximum DC/AC current and voltage and rated DC/AC current and voltage. Other parameters are power in standby mode, power in sleeping (night) mode, power factor, distortion, noise level etc. The following parameters can usually be found in inverter data sheets:

Rated DC voltage VDC V
MPP voltage range VMPP V
Maximum DC voltage VDCmax V
Switch off voltage VDCoff V
Rated AC voltage VAC V
Maximum system voltage Vmax V
Rated DC current IDC A
Maximum DC current IDCmax A
Rated AC current IAC A
Maximum AC current IACmax A

TABLE 1: Inverter, electrical parameters - voltage and current

Rated DC power PDC W
Maximum DC power PDCmax W
Rated AC power PAC W
Maximum AC power PACmax W
DC power Off PDCoff W
DC power On PDCon W
Power factor φ -
Standby DC power PDCStandby W
Night mode DC power Pnight W

TABLE 2: Inverter, electrical parameters - power

Noise level GdB dBA
Operating temperature range Toper °C
Total harmonic distortion k (THD) -

TABLE 3: Non-electrical parameters of inverters


Inverter efficiency is a ratio of AC power and DC power:

PDC - DC array power, PAC - output AC power

Other efficiency definitions include convertion efficiency, MMPT efficiency, dynamic efficiency and weighted (euro) efficiency. To make comparison of different inverters and/or inverters that are operating under different climatic conditions possible, weighted efficiency was defined. Following equation is valid for Europe:

For southern USA with higher irradiance values weighted efficiency with corrected factors is as follows:

Protection Functions - Islanding and line disconnect

Islanding operation can be detected or monitored by passive or active islanding detection method. Passive method includes detecting rate of change of frequency, voltage phase jump and three-phase voltage drop monitoring. With active islanding operation detection method frequency shift, active frequency drift - AFD, ENS (impedance measurement), and reactive power fluctuation are detected and monitored.

ENS = Selbsttätig wirkende Freischaltstelle mit zwei voneinander unabhängigen Einrichtungen zur Netzüberwachung mit zugeordneten allpoligen Schaltern in Reihe.

Other description for such kind of protection is: MSD = Mains Monitoring Units with Allocated All-pole Switching Devices.
